Car Trouble Codes or DTC's

by Eddie Carrara

ON-Board Diagnostic Trouble Codes

The list below contains standard diagnostic trouble codes (DTC's) used by some manufacturers to identify vehicle problems. The diagnostic trouble codes provided below are generic codes that may not apply to all vehicles. Vehicle manufacturers may use manufacturer specific DTC codes that are different from the codes shown below.

Foreign vehicles may also use DTC codes different from the generic DTC codes. The Division recommends that motorists not depend on the DTC codes in this list for vehicle repairs until they confirm the generic DTC codes apply to their vehicles. The list below is for information purposes only and not intended for use in vehicle repairs.

If you need a code reader to pull the code from the car's computer, there are plenty of code readers on the market. Some things to keep in mind when shopping for a code reader;

  1.  Buy a code reader with updatable software using your home computer. Vehicles are getting more sophisticated each year, and you don't want to buy a code reader that will be obsolete in a year.
  2. Be sure the code reader displays the code and the DTC's definition without looking it up online.
  3. The unit should store the DTC in the code reader's memory for future reference.
  4. The unit should have a battery back up for off the car DTC review and diagnosis.

One of the best code readers I have found for a reasonable price is the Innova Diagnostic Scan Tool, as seen below.

It has all the features I recommend and more. If you're a DIYer, this is all you need in a code reader. This code readers price runs between $100- $120, and it's well worth it. Some shops charge $90 to pull a code, which does not include the price to fix the problem. If you're looking for other options for code readers, there are some cheaper models listed below that are not as sophisticated, they read and clear codes, and sometimes that's all you need.

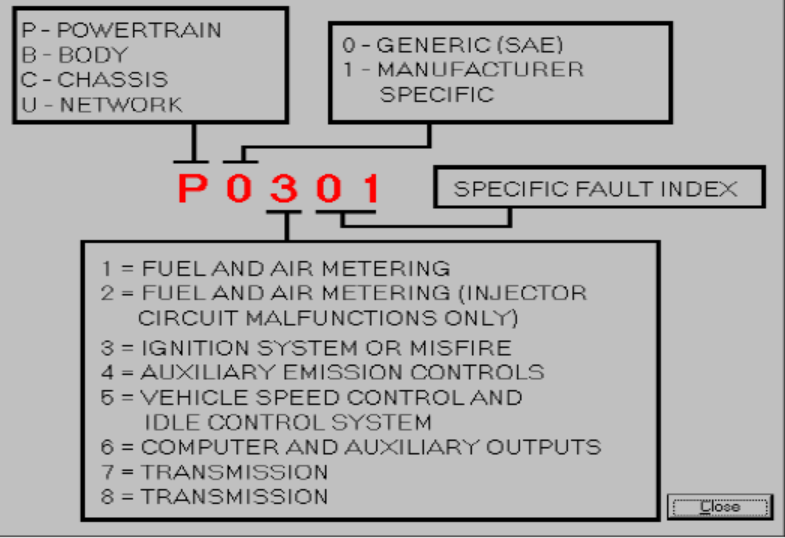

Diagnostic Trouble Code (DTCs) -- Trouble codes are how

OBDII identifies and communicates to technicians where and

what on-board problems exist. The first number in the DTC

indicates whether the code is an SAE generic code (applies to

all OBDII systems) or is specific to the vehicle manufacturer.

The remaining three numbers provide information regarding the

specific vehicle system and circuit. An analysis of a typical

OBDII code is shown below.

The Following is a List of Generic DTC's

DTC Codes - P0100-P0199 – Fuel and Air Metering

DTC Description

P0100 Mass or Volume Air Flow Circuit Malfunction

P0101 Mass or Volume Air Flow Circuit Range/Performance Problem

P0102 Mass or Volume Air Flow Circuit Low Input

P0103 Mass or Volume Air Flow Circuit High Input

P0104 Mass or Volume Air Flow Circuit Intermittent

P0105 Manifold Absolute Pressure/Barometric Pressure Circuit Malfunction

P0106 Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem

P0107 Manifold Absolute Pressure/Barometric Pressure Circuit Low Input

P0108 Manifold Absolute Pressure/Barometric Pressure Circuit High Input

P0109 Manifold Absolute Pressure/Barometric Pressure Circuit Intermittent

P0109 Intake Air Temperature Circuit Malfunction

P0111 Intake Air Temperature Circuit Range/Performance Problem

P0112 Intake Air Temperature Circuit Low Input

Diagnostic Trouble Code (DTCs) -- Trouble codes are how

OBDII identifies and communicates to technicians where and

what on-board problems exist. The first number in the DTC

indicates whether the code is an SAE generic code (applies to

all OBDII systems) or is specific to the vehicle manufacturer.

The remaining three numbers provide information regarding the

specific vehicle system and circuit. An analysis of a typical

OBDII code is shown below.

Following is a list of generic DTCs

Diagnostic Trouble Code (DTCs)

P0113 Intake Air Temperature Circuit High Input

P0114 Intake Air Temperature Circuit Intermittent

P0115 Engine Coolant Temperature Circuit Malfunction

P0116 Engine Coolant Temperature Circuit Range/Performance Problem

P0117 Engine Coolant Temperature Circuit Low Input

P0118 Engine Coolant Temperature Circuit High Input

P0119 Engine Coolant Temperature Circuit Intermittent

P0120 Throttle/Petal Position Sensor/Switch A Circuit Malfunction

P0121 Throttle/Petal Position Sensor/Switch A Circuit Range/Performance Problem

P0122 Throttle/Petal Position Sensor/Switch A Circuit Low Input

P0123 Throttle/Petal Position Sensor/Switch A Circuit High Input

P0124 Throttle/Petal Position Sensor/Switch A Circuit Intermittent

P0125 Insufficient Coolant Temperature for Closed Loop Fuel Control

P0126 Insufficient Coolant Temperature for Stable Operation

P0130 02 Sensor Circuit Malfunction (Bank I Sensor 1)

P0131 02 Sensor Circuit Low Voltage (Bank I Sensor I)

P0132 02 Sensor Circuit High Voltage (Bank I Sensor 1)

P0133 02 Sensor Circuit Slow Response (Bank 1 Sensor 1)

P0134 02 Sensor Circuit No Activity Detected (Bank I Sensor 1)

P0135 02 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)

P0136 02 Sensor Circuit Malfunction (Bank I Sensor 2)

P0137 02 Sensor Circuit Low Voltage (Bank I Sensor 2)

P0138 02 Sensor Circuit High Voltage (Bank I Sensor 2)

P0139 02 Sensor Circuit Slow Response (Bank 1 Sensor 2)

P0140 02 Sensor Circuit No Activity Detected (Bank 1 Sensor 2)

P0141 02 Sensor Heater Circuit Malfunction (Bank 1 Sensor 2)

P0142 02 Sensor Circuit Malfunction (Bank I Sensor 3)

P0143 02 Sensor Circuit Low Voltage (Bank I Sensor 3)

P0144 02 Sensor Circuit High Voltage (Bank I Sensor 3)

P0145 02 Sensor Circuit Slow Response (Bank 1 Sensor 3)

P0146 02 Sensor Circuit No Activity Detected (Bank I Sensor 3)

P0147 02 Sensor Heater Circuit Malfunction (Bank I Sensor 3)

P0150 02 Sensor Circuit Malfunction (Bank 2 Sensor I)

P0151 02 Sensor Circuit Low Voltage (Bank 2 Sensor I)

P0152 02 Sensor Circuit High Voltage (Bank 2 Sensor 1)

P0153 02 Sensor Circuit Slow Response (Bank 2 Sensor 1)

P0154 02 Sensor Circuit No Activity Detected (Bank 2 Sensor 1)

P0155 02 Sensor Heater Circuit Malfunction (Bank 2 Sensor 1)

P0156 02 Sensor Circuit Malfunction (Bank 2 Sensor 2)

P0157 02 Sensor Circuit Low Voltage (Bank 2 Sensor 2)

P0158 02 Sensor Circuit High Voltage (Bank 2 Sensor 2)

P0159 02 Sensor Circuit Slow Response (Bank 2 Sensor 2)

P0160 02 Sensor Circuit No Activity Detected (Bank 2 Sensor 2)

P0161 02 Sensor Heater Circuit Malfunction (Bank 2 Sensor 2)

P0162 02 Sensor Circuit Malfunction (Bank 2 Sensor 3)

P0163 02 Sensor Circuit Low Voltage (Bank 2 Sensor 3)

P0164 02 Sensor Circuit High Voltage (Bank 2 Sensor 3)

P0165 02 Sensor Circuit Slow Response (Bank 2 Sensor 3)

P0166 02 Sensor Circuit No Activity Detected (Bank 2 Sensor 3)

P0167 02 Sensor Heater Circuit Malfunction (Bank 2 Sensor 3)

P0170 Fuel Trim Malfunction (Bank 1)

P0171 System too Lean (Bank 1)

P0172 System too Rich (Bank 1)

P0173 Fuel Trim Malfunction (Bank 2)

P0174 System too Lean (Bank 2)

P0175 System too Rich (Bank 2)

P0176 Fuel Composition Sensor Circuit Malfunction

P0177 Fuel Composition Sensor Circuit Range/Performance

P0178 Fuel Composition Sensor Circuit Low Input

P0179 Fuel Composition Sensor Circuit High Input

P0180 Fuel Temperature Sensor A Circuit Malfunction

P0181 Fuel Temperature Sensor A Circuit Range/Performance

P0182 Fuel Temperature Sensor A Circuit Low Input

P0183 Fuel Temperature Sensor A Circuit High Input

P0184 Fuel Temperature Sensor A Circuit Intermittent

P0185 Fuel Temperature Sensor B Circuit Malfunction

P0186 Fuel Temperature Sensor B Circuit Range/Performance

P0187 Fuel Temperature Sensor B Circuit Low Input

P0188 Fuel Temperature Sensor B Circuit High Input

P0189 Fuel Temperature Sensor B Circuit Intermittent

P0190 Fuel Rail Pressure Sensor Circuit Malfunction

P0191 Fuel Rail Pressure Sensor Circuit Range/Performance

P0192 Fuel Rail Pressure Sensor Circuit Low Input

P0193 Fuel Rail Pressure Sensor Circuit High Input

P0194 Fuel Rail Pressure Sensor Circuit Intermittent

P0195 Engine Oil Temperature Sensor Malfunction

P0196 Engine Oil Temperature Sensor Range/Performance

P0197 Engine Oil Temperature Sensor Low

P0198 Engine Oil Temperature Sensor High

P0199 Engine Oil Temperature Sensor Intermittent

DTC Codes - P0200-P0299 – Fuel and Air Metering (Injector Circuit)

DTC Description

P0200 Injector Circuit Malfunction

P0201 Injector Circuit Malfunction - Cylinder 1

P0202 Injector Circuit Malfunction - Cylinder 2

P0203 Injector Circuit Malfunction - Cylinder 3

P0204 Injector Circuit Malfunction - Cylinder 4

P0205 Injector Circuit Malfunction - Cylinder 5

P0206 Injector Circuit Malfunction - Cylinder 6

P0207 Injector Circuit Malfunction - Cylinder 7

P0208 Injector Circuit Malfunction - Cylinder 8

P0209 Injector Circuit Malfunction - Cylinder 9

P0210 Injector Circuit Malfunction - Cylinder 10

P0211 Injector Circuit Malfunction - Cylinder 11

P0212 Injector Circuit Malfunction - Cylinder 12

P0213 Cold Start Injector 1 Malfunction

P0214 Cold Start Injector 2 Malfunction

P0215 Engine Shutoff Solenoid Malfunction

P0216 Injection Timing Control Circuit Malfunction

P0217 Engine Overtemp Condition

P0218 Transmission Over Temperature Condition

P0219 Engine Overspeed Condition

P0220 Throttle/Petal Position Sensor/Switch B Circuit Malfunction

P0221 Throttle/Petal Position Sensor/Switch B Circuit Range/Performance Problem

P0222 Throttle/Petal Position Sensor/Switch B Circuit Low Input

P0223 Throttle/Petal Position Sensor/Switch B Circuit High Input

P0224 Throttle/Petal Position Sensor/Switch B Circuit Intermittent

P0225 Throttle/Petal Position Sensor/Switch C Circuit Malfunction

P0226 Throttle/Petal Position Sensor/Switch C Circuit Range/Performance Problem

P0227 Throttle/Petal Position Sensor/Switch C Circuit Low Input

P0228 Throttle/Petal Position Sensor/Switch C Circuit High Input

P0229 Throttle/Petal Position Sensor/Switch C Circuit Intermittent

P0230 Fuel Pump Primary Circuit Malfunction

P0231 Fuel Pump Secondary Circuit Low

P0232 Fuel Pump Secondary Circuit High

P0233 Fuel Pump Secondary Circuit Intermittent

P0234 Engine Overboost Condition

P0235 Turbocharger Boost Sensor A Circuit Malfunction

P0236 Turbocharger Boost Sensor A Circuit Range/Performance

P0237 Turbocharger Boost Sensor A Circuit Low

P0238 Turbocharger Boost Sensor A Circuit High

P0239 Turbocharger Boost Sensor B Malfunction

P0240 Turbocharger Boost Sensor B Circuit Range/Performance

P0241 Turbocharger Boost Sensor B Circuit Low

P0242 Turbocharger Boost Sensor B Circuit High

P0243 Turbocharger Wastegate Solenoid A Malfunction

P0244 Turbocharger Wastegate Solenoid A Range/Performance

P0245 Turbocharger Wastegate Solenoid A Low

P0246 Turbocharger Wastegate Solenoid A High

P0247 Turbocharger Wastegate Solenoid B Malfunction

P0248 Turbocharger Wastegate Solenoid B Range/Performance

P0249 Turbocharger Wastegate Solenoid B Low

P0250 Turbocharger Wastegate Solenoid B High

P0251 Injection Pump Fuel Metering Control "A" Malfunction (Cam/Rotor/Injector)

P0252 Injection Pump Fuel Metering Control "A" Range/Performance (Cam/Rotor/Injector)

P0253 Injection Pump Fuel Metering Control "A" Low (Cam/Rotor/Injector)

P0254 Injection Pump Fuel Metering Control "A" High (Cam/Rotor/Injector)

P0255 Injection Pump Fuel Metering Control "A" Intermittent (Cam/Rotor/Injector)

P0256 Injection Pump Fuel Metering Control "B" Malfunction (Cam/Rotor/Injector)

P0257 Injection Pump Fuel Metering Control "B" Range/Performance Injector)

P0258 Injection Pump Fuel Metering Control "B" Low (Cam/R

P0259 Injection Pump Fuel Metering Control "B" High (Cam/R

P0260 Injection Pump Fuel Metering Control "B" Intermittent Injector)

P0261 Cylinder I Injector Circuit Low

P0262 Cylinder I Injector Circuit High

P0263 Cylinder I Contribution/Balance Fault

P0264 Cylinder 2 Injector Circuit Low

P0265 Cylinder 2 Injector Circuit High

P0266 Cylinder 2 Contribution/Balance Fault

P0267 Cylinder 3 Injector Circuit Low

P0268 Cylinder 3 Injector Circuit High

P0269 Cylinder 3 Contribution/Balance Fault

P0270 Cylinder 4 Injector Circuit Low

P0271 Cylinder 4 Injector Circuit High

P0272 Cylinder 4 Contribution/Balance Fault

P0273 Cylinder 5 Injector Circuit Low

P0274 Cylinder 5 Injector Circuit High

P0275 Cylinder S Contribution/Balance Fault

P0276 Cylinder 6 Injector Circuit Low

P0277 Cylinder 6 Injector Circuit High

P0278 Cylinder 6 Contribution/Balance Fault

P0279 Cylinder 7 Injector Circuit Low

P0280 Cylinder 7 Injector Circuit High

P0281 Cylinder 7 Contribution/Balance Fault

P0282 Cylinder 8 Injector Circuit Low

P0283 Cylinder 8 Injector Circuit High

P0284 Cylinder 8 Contribution/Balance Fault

P0285 Cylinder 9 Injector Circuit Low

P0286 Cylinder 9 Injector Circuit High

P0287 Cylinder 9 Contribution/Balance Fault

P0288 Cylinder 10 Injector Circuit Low

P0289 Cylinder 10 Injector Circuit High

P0290 Cylinder 10 Contribution/Balance Fault

P0291 Cylinder 11 Injector Circuit Low

P0292 Cylinder 11 Injector Circuit High

P0293 Cylinder 11 Contribution/Balance Fault

P0294 Cylinder 12 Injector Circuit Low

P0295 Cylinder 12 Injector Circuit High

P0296 Cylinder 12 Contribution/Range Fault

DTC Codes - P0300-P0399 – Ignition System or Misfire

DTC Description

P0300 Random/Multiple Cylinder Misfire Detected

P0301 Cylinder 1 Misfire Detected

P0302 Cylinder 2 Misfire Detected

P0303 Cylinder 3 Misfire Detected

P0304 Cylinder 4 Misfire Detected

P0305 Cylinder 5 Misfire Detected

P0306 Cylinder 6 Misfire Detected

P0307 Cylinder 7 Misfire Detected

P0308 Cylinder 8 Misfire Detected

P0309 Cylinder 9 Misfire Detected

P0311 Cylinder 11 Misfire Detected

P0312 Cylinder 12 Misfire Detected

P0320 Ignition/Distributor Engine Speed Input Circuit Malfunction

P0321 Ignition/Distributor Engine Speed Input Circuit Range/Performance

P0322 Ignition/Distributor Engine Speed Input Circuit No Signal

P0323 Ignition/Distributor Engine Speed Input Circuit Intermittent

P0325 Knock Sensor 1 Circuit Malfunction (Bank I or Single Sensor)

P0326 Knock Sensor 1 Circuit Range/Performance (Bank 1 or Single Sensor)

P0327 Knock Sensor 1 Circuit Low Input (Bank I or Single Sensor)

P0328 Knock Sensor 1 Circuit High Input (Bank I or Single Sensor)

P0329 Knock Sensor 1 Circuit Intermittent (Bank 1 or Single Sensor)

P0330 Knock Sensor 2 Circuit Malfunction (Bank 2)

P0331 Knock Sensor 2 Circuit Range/Performance (Bank 2)

P0332 Knock Sensor 2 Circuit Low Input (Bank 2)

P0333 Knock Sensor 2 Circuit High Input (Bank 2)

P0334 Knock Sensor 2 Circuit Intermittent (Bank 2)

P0335 Crankshaft Position Sensor A Circuit Malfunction

P0336 Crankshaft Position Sensor A Circuit Range/Performance

P0337 Crankshaft Position Sensor A Circuit Low Input

P0338 Crankshaft Position Sensor A Circuit High Input

P0339 Crankshaft Position Sensor A Circuit Intermittent

P0340 Camshaft Position Sensor Circuit Malfunction

P0341 Camshaft Position Sensor Circuit Range/Performance

P0342 Camshaft Position Sensor Circuit Low Input

P0343 Camshaft Position Sensor Circuit High Input

P0344 Camshaft Position Sensor Circuit Intermittent

P0350 Ignition Coil Primary/Secondary Circuit Malfunction

P0351 Ignition Coil A Primary/Secondary Circuit Malfunction

P0352 Ignition Coil B Primary/Secondary Circuit Malfunction

P0353 Ignition Coil C Primary/Secondary Circuit Malfunction

P0354 Ignition Coil D Primary/Secondary Circuit Malfunction

P0355 Ignition Coil E Primary/Secondary Circuit Malfunction

P0356 Ignition Coil F Primary/Secondary Circuit Malfunction

P0357 Ignition Coil G Primary/Secondary Circuit Malfunction

P0358 Ignition Coil H Primary/Secondary Circuit Malfunction

P0359 Ignition Coil I Primary/Secondary Circuit Malfunction

P0360 Ignition Coil J Primary/Secondary Circuit Malfunction

P0361 Ignition Coil K Primary/Secondary Circuit Malfunction

P0362 Ignition Coil L Primary/Secondary Circuit Malfunction

P0370 Timing Reference High Resolution Signal A Malfunction

P0371 Timing Reference High Resolution Signal A Too Many Pulses

P0372 Timing Reference High Resolution Signal A Too Few Pulses

P0373 Timing Reference High Resolution Signal A Intermittent/Erratic Pulses

P0374 Timing Reference High Resolution Signal A No Pulses

P0375 Timing Reference High Resolution Signal B Malfunction

P0376 Timing Reference High Resolution Signal B Too Many Pulses

P0377 Timing Reference High Resolution Signal B Too Few Pulses

P0378 Timing Reference High Resolution Signal B Intermittent/Erratic Pulses

P0379 Timing Reference High Resolution Signal B No Pulses

P0380 Glow Plug/Heater Circuit "A" Malfunction

P0381 Glow Plug/Heater Indicator Circuit Malfunction

P0382 Exhaust Gas Recirculation Flow Malfunction

P0385 Crankshaft Position Sensor B Circuit Malfunction

P0386 Crankshaft Position Sensor B Circuit Range/Performance

P0387 Crankshaft Position Sensor B Circuit Low Input

P0388 Crankshaft Position Sensor B Circuit High Input

P0389 Crankshaft Position Sensor B Circuit Intermittent

DTC Codes - P0400-P0499 – Auxiliary Emissions Controls

DTC Description

P0400 Exhaust Gas Recirculation Flow Malfunction

P0401 Exhaust Gas Recirculation Flow Insufficient Detected

P0402 Exhaust Gas Recirculation Flow Excessive Detected

P0403 Exhaust Gas Recirculation Circuit Malfunction

P0404 Exhaust Gas Recirculation Circuit Range/Performance

P0405 Exhaust Gas Recirculation Sensor A Circuit Low

P0406 Exhaust Gas Recirculation Sensor A Circuit High

P0407 Exhaust Gas Recirculation Sensor B Circuit Low

P0408 Exhaust Gas Recirculation Sensor B Circuit High

P0410 Secondary Air Injection System Malfunction

P0411 Secondary Air Injection System Incorrect Flow Detected

P0412 Secondary Air Injection System Switching Valve A Circuit Malfunction

P0413 Secondary Air Injection System Switching Valve A Circuit Open

P0414 Secondary Air Injection System Switching Valve A Circuit Shorted

P0415 Secondary Air Injection System Switching Valve B Circuit Malfunction

P0416 Secondary Air Injection System Switching Valve B Circuit Open

P0417 Secondary Air Injection System Switching Valve B Circuit Shorted

P0418 Secondary Air Injection System Relay ‘A" Circuit Malfunction

P0419 Secondary Air Injection System Relay "B’ Circuit Malfunction

P0420 Catalyst System Efficiency Below Threshold (Bank 1)

P0421 Warm Up Catalyst Efficiency Below Threshold (Bank 1)

P0422 Main Catalyst Efficiency Below Threshold (Bank 1)

P0423 Heated Catalyst Efficiency Below Threshold (Bank 1)

P0424 Heated Catalyst Temperature Below Threshold (Bank 1)

P0430 Catalyst System Efficiency Below Threshold (Bank 2)

P0431 Warm Up Catalyst Efficiency Below Threshold (Bank 2)

P0432 Main Catalyst Efficiency Below Threshold (Bank 2)

P0433 Heated Catalyst Efficiency Below Threshold (Bank 2)

P0434 Heated Catalyst Temperature Below Threshold (Bank 2)

P0440 Evaporative Emission Control System Malfunction

P0441 Evaporative Emission Control System Incorrect Purge Flow

P0442 Evaporative Emission Control System Leak Detected (small leak)

P0443 Evaporative Emission Control System Purge Control Valve Circuit

P0444 Evaporative Emission Control System Purge Control Valve Circuit

P0445 Evaporative Emission Control System Purge Control Valve Circuit Shorted

P0446 Evaporative Emission Control System Vent Control Circuit Malfunction

P0447 Evaporative Emission Control System Vent Control Circuit Open

P0448 Evaporative Emission Control System Vent Control Circuit Shorted

P0449 Evaporative Emission Control System Vent Valve/Solenoid Circuit Malfunction

P0450 Evaporative Emission Control System Pressure Sensor Malfunction

P0451 Evaporative Emission Control System Pressure Sensor Range/Performance

P0452 Evaporative Emission Control System Pressure Sensor Low Input

P0453 Evaporative Emission Control System Pressure Sensor High Input

P0454 Evaporative Emission Control System Pressure Sensor Intermittent

P0455 Evaporative Emission Control System Leak Detected (gross leak)

P0460 Fuel Level Sensor Circuit Malfunction

P0461 Fuel Level Sensor Circuit Range/Performance

P0462 Fuel Level Sensor Circuit Low Input

P0463 Fuel Level Sensor Circuit High Input

P0464 Fuel Level Sensor Circuit Intermittent

P0465 Purge Flow Sensor Circuit Malfunction

P0466 Purge Flow Sensor Circuit Range/Performance

P0467 Purge Flow Sensor Circuit Low Input

P0468 Purge Flow Sensor Circuit High Input

P0469 Purge Flow Sensor Circuit Intermittent

P0470 Exhaust Pressure Sensor Malfunction

P0471 Exhaust Pressure Sensor Range/Performance

P0472 Exhaust Pressure Sensor Low

P0473 Exhaust Pressure Sensor High

P0474 Exhaust Pressure Sensor Intermittent

P0475 Exhaust Pressure Control Valve Malfunction

P0476 Exhaust Pressure Control Valve Range/Performance

P0477 Exhaust Pressure Control Valve Low

P0478 Exhaust Pressure Control Valve High

P0479 Exhaust Pressure Control Valve Intermittent

P0480 Cooling Fan I Control Circuit Malfunction

P0481 Cooling Fan 2 Control Circuit Malfunction

P0482 Cooling Fan 3 Control Circuit Malfunction

P0483 Cooling Fan Rationality Check Malfunction

P0484 Cooling Fan Circuit Over Current

P0485 Cooling Fan Power/Ground Circuit Malfunction

DTC Codes - P0500-P0599 – Vehicle Speed Controls and Idle Control System

DTC Description

P0500 Vehicle Speed Sensor Malfunction

P0501 Vehicle Speed Sensor Range/Performance

P0502 Vehicle Speed Sensor Low Input

P0503 Vehicle Speed Sensor Intermittent/Erratic/High

P0505 Idle Control System Malfunction

P0506 Idle Control System RPM Lower Than Expected

P0507 Idle Control System RPM Higher Than Expected

P0510 Closed Throttle Position Switch Malfunction

P0520 Engine Oil Pressure Sensor/Switch Circuit Malfunction

P0521 Engine Oil Pressure Sensor/Switch Circuit Range/Performance

P0522 Engine Oil Pressure Sensor/Switch Circuit Low Voltage

P0523 Engine Oil Pressure Sensor/Switch Circuit High Voltage

P0530 A/C Refrigerant Pressure Sensor Circuit Malfunction

P0531 A/C Refrigerant Pressure Sensor Circuit Range/Performance

P0532 A/C Refrigerant Pressure Sensor Circuit Low Input

P0533 A/C Refrigerant Pressure Sensor Circuit High Input

P0534 Air Conditioner Refrigerant Charge Loss

P0550 Power Steering Pressure Sensor Circuit Malfunction

P0551 Power Steering Pressure Sensor Circuit Range/Performance

P0552 Power Steering Pressure Sensor Circuit Low Input

P0553 Power Steering Pressure Sensor Circuit High Input

P0554 Power Steering Pressure Sensor Circuit Intermittent

P0560 System Voltage Malfunction

P0561 System Voltage Unstable

P0562 System Voltage Low

P0563 System Voltage High

P0565 Cruise Control On Signal Malfunction

P0566 Cruise Control Off Signal Malfunction

P0567 Cruise Control Resume Signal Malfunction

P0568 Cruise Control Set Signal Malfunction

P0569 Cruise Control Coast Signal Malfunction

P0570 Cruise Control Accel Signal Malfunction

P0571 Cruise Control/Brake Switch A Circuit Malfunction

P0572 Cruise Control/Brake Switch A Circuit Low

P0573 Cruise Control/Brake Switch A Circuit High

P0574 Cruise Control Related Malfunction

P0575 Cruise Control Related Malfunction

P0576 Cruise Control Related Malfunction

P0576 Cruise Control Related Malfunction

P0578 Cruise Control Related Malfunction

P0579 Cruise Control Related Malfunction

P0580 Cruise Control Related Malfunction

DTC Codes - P0600-P0699 – Computer Output Circuit

DTC Description

P0600 Serial Communication Link Malfunction

P0601 Internal Control Module Memory Check Sum Error

P0602 Control Module Programming Error

P0603 Internal Control Module Keep Alive Memory (KAM) Error

P0604 Internal Control Module Random Access Memory (RAM) Error

P0605 Internal Control Module Read Only Memory (ROM) Error

P0606 PCM Processor Fault

P0608 Control Module VSS Output "A’ Malfunction

P0609 Control Module VSS Output "B" Malfunction

P0620 Generator Control Circuit Malfunction

P0621 Generator Lamp "L" Control Circuit Malfunction

P0622 Generator Field "F" Control Circuit Malfunction

P0650 Malfunction Indicator Lamp (MIL) Control Circuit Malfunction

P0654 Engine RPM Output Circuit Malfunction

P0655 Engine Hot Lamp Output Control Circuit Malfunction

P0656 Fuel Level Output Circuit Malfunction

DTC Codes - P0700-P0899 – Transmission

DTC Description

P0700 Transmission Control System Malfunction

P0701 Transmission Control System Range/Performance

P0702 Transmission Control System Electrical

P0703 Torque Converter/Brake Switch B Circuit Malfunction

P0704 Clutch Switch Input Circuit Malfunction

P0705 Transmission Range Sensor Circuit malfunction (PRNDL Input)

P0706 Transmission Range Sensor Circuit Range/Performance

P0707 Transmission Range Sensor Circuit Low Input

P0708 Transmission Range Sensor Circuit High Input

P0709 Transmission Range Sensor Circuit Intermittent

P0710 Transmission Fluid Temperature Sensor Circuit Malfunction

P0711 Transmission Fluid Temperature Sensor Circuit Range/Performance

P0712 Transmission Fluid Temperature Sensor Circuit Low Input

P0713 Transmission Fluid Temperature Sensor Circuit High Input

P0714 Transmission Fluid Temperature Sensor Circuit Intermittent

P0715 Input/Turbine Speed Sensor Circuit Malfunction

P0716 Input/Turbine Speed Sensor Circuit Range/Performance

P0717 Input/Turbine Speed Sensor Circuit No Signal

P0718 Input/Turbine Speed Sensor Circuit Intermittent

P0719 Torque Converter/Brake Switch B Circuit Low

P0720 Output Speed Sensor Circuit Malfunction

P0721 Output Speed Sensor Range/Performance

P0722 Output Speed Sensor No Signal

P0723 Output Speed Sensor Intermittent

P0724 Torque Converter/Brake Switch B Circuit High

P0725 Engine Speed input Circuit Malfunction

P0726 Engine Speed Input Circuit Range/Performance

P0727 Engine Speed Input Circuit No Signal

P0728 Engine Speed Input Circuit Intermittent

P0730 Incorrect Gear Ratio

P0731 Gear I Incorrect ratio

P0732 Gear 2 Incorrect ratio

P0733 Gear 3 Incorrect ratio

P0734 Gear 4 Incorrect ratio

P0735 Gear 5 Incorrect ratio

P0736 Reverse incorrect gear ratio

P0740 Torque Converter Clutch Circuit Malfunction

P0741 Torque Converter Clutch Circuit Performance or Stuck Off

P0742 Torque Converter Clutch Circuit Stock On

P0743 Torque Converter Clutch Circuit Electrical

P0744 Torque Converter Clutch Circuit Intermittent

P0745 Pressure Control Solenoid Malfunction

P0746 Pressure Control Solenoid Performance or Stuck Off

P0747 Pressure Control Solenoid Stuck On

P0748 Pressure Control Solenoid Electrical

P0749 Pressure Control Solenoid Intermittent

P0750 Shift Solenoid A Malfunction

P0751 Shift Solenoid A Performance or Stuck Off

P0752 Shift Solenoid A Stuck On

P0753 Shift Solenoid A Electrical

P0754 Shift Solenoid A Intermittent

P0755 Shift Solenoid B Malfunction

P0756 Shift Solenoid B Performance or Stock Off

P0757 Shift Solenoid B Stuck On

P0758 Shift Solenoid B Electrical

P0759 Shift Solenoid B Intermittent

P0760 Shift Solenoid C Malfunction

P076 I Shift Solenoid C Performance or Stuck Off

P0762 Shift Solenoid C Stuck On

P0763 Shift Solenoid C Electrical

P0764 Shift Solenoid C Intermittent

P0765 Shift Solenoid D Malfunction

P0766 Shift Solenoid D Performance or Stuck Off

P0767 Shift Solenoid D Stuck On

P0768 Shift Solenoid D Electrical

P0769 Shift Solenoid D Intermittent

P0770 Shift Solenoid E Malfunction

P0771 Shift Solenoid E Performance or Stuck Off

P0772 Shift Solenoid E Stuck On

P0773 Shift Solenoid E Electrical

P0774 Shift Solenoid E Intermittent

P0780 Shift Malfunction

P0781 1-2 Shift Malfunction

P0782 2-3 Shift Malfunction

P0783 3-4 Shift Malfunction

P0784 4-5 Shift Malfunction

P0785 Shift/Timing Solenoid Malfunction

P0786 Shift/Timing Solenoid Range/Performance

P0787 Shift/Timing Solenoid Low

P0788 Shift/Timing Solenoid High

P0789 Shift/Timing Solenoid Intermittent

P0790 Normal/Performance Switch Circuit Malfunction

P0801 Reverse Inhibit Control Circuit Malfunction

P0803 1-4 Upshift (Skip Shift) Solenoid Control Circuit Malfunction

P0804 1-4 Upshift (Skip Shift) Lamp Control Circuit Malfunction

More Articles on Auto Computer Codes

Auto Computer Codes, What They Are, and How To Read Them

What is a Bad Oxygen Sensor?


Leave Car Trouble Codes page and return to Simple Car Answers homepage.

comments powered by Disqus
